| Description | Ports | Bore Diameter | Rod Diameter | Weight (lbs) | SKU |
|---|---|---|---|---|---|

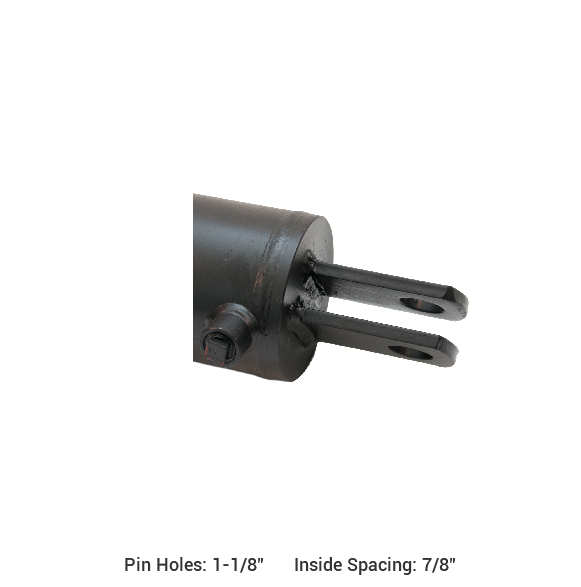

Clevis Mount Cylinder 24” Stroke,3500 psi Clevis holes: 1-1/8” Clevis inside spacing: 7/8” | 1/2” NPT Female | 4 4.5” 5” | 1.75” 1.75” 2” | 58 60 70 | HYDC040 HYDC045 HYDC050 |

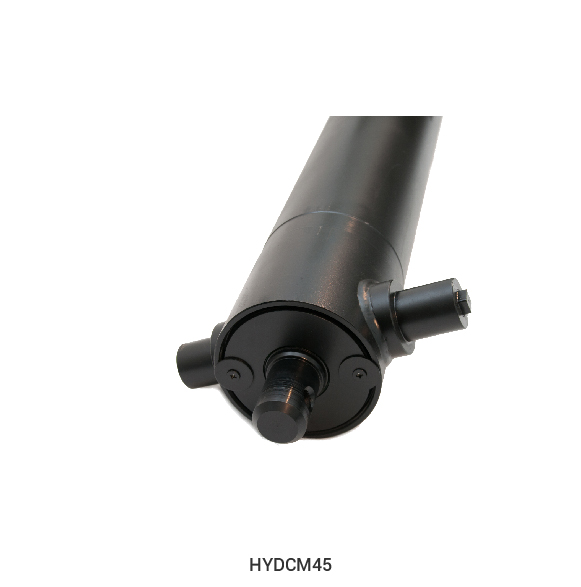

MTD Trunnion Mount Cylinder 24” Stroke,3500 psi Fits MTD, Troy Built, Cub Cadet, Bolens Trunnion Mount | SAE-8 ORB Female; JIC-8 Male | 4.5” | 1.75” | 60 | HYDCM45 |
MTD Trunnion Mount w/Flange 24” Stroke, 3500 psi Older style w/ valve bracket | SAE-8 ORB Female; SAE-8 ORFS | 4” 4.5” | 1.75” 1.75” | 54 60 | HYDCM40F HYDCM45F |
MTD Clevis Mount Cylinder 24” Stroke, 3500 psi | 1/2” NPT Male JIC-8 Male | 4” 4.5” | 1.75” 1.75” | 54 60 | HYDCM40F HYDCM45F |
