劈木机泵&阀

qrcode

DescriptionAttachmentOptionsSKU

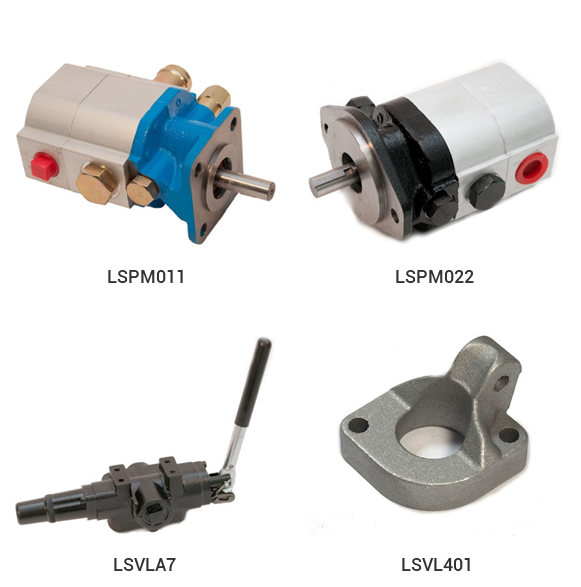

6.5 - 10 HP 2 Stage Hi-Lo Gear Pump, 4 Bolt  Aluminum body pump with high volume, low  pressure stage (<650psi) and a low volume  high pressure stage. At higher pressures (650-3000psi) only the low volume stage  runs. Has check valve and relief valve. Great  for log splitters, presses, high pressure ma-  chine tools. Options cover 5-15 HP motors.

Shaft: 1/2” w/ flat ke

 Inlet: 1” w/ barb

Outlet: 1/2” F NPT

Mount: 4 bolt, 2” square

11 (8.8/1.6) gpm

11 (8.8/2.1) gpm

13 (10.9/2.1) gpm

16 (13/3) gpm

19 (16.5/3.5) gpm

@3600rpm

650/3000psi

LSPMM11

LSPM011

LSPM013

LSPM016

LSPM019

11+ HP 2 Stage Hi-Lo Gear Pump, 2 Bolt  Aluminum body pump with high volume, low  pressure stage (<650 psi) and a low volume  high pressure stage. At higher pressures (650-3000psi) only the low volume stage  runs. Great for log splitters, presses, high  pressure machine tools.

Shaft: 5/8” w/ flat ke

 Inlet: 1” F NPT

Outlet: 3/4” F NPT Female

Mount: SAE-A 2 bolt, 4.19” apart

22 (16/7) gpm

28 (22/7) gpm

@ 3600rpm

650/3000psi

LSPM022

LSPM028

Log Splitter Valve, Adjustable Detent Log splitter valve with adjustable detent,  keeping the valve in retract position until  retraction is complete, preset to return to  neutral at 1000 psi. 25 gpm maximum flow  rate, 3000 psi working pressure.

Cylinder Ports:

 1/2” NPT

Pump in & tank return ports:

3/4” NPT

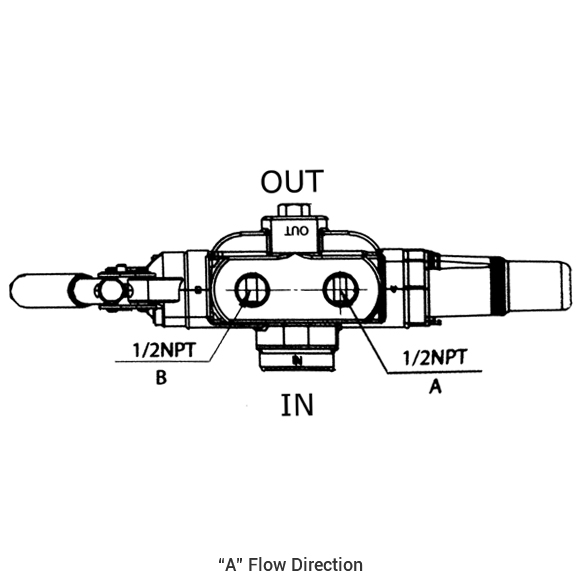

A Flow Direction

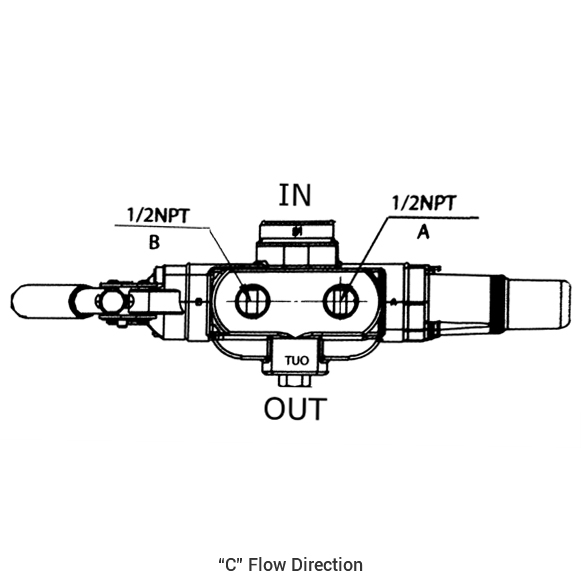

C Flow Direction

LSVLA7

LSVLC5

Handle Mounting Bracket, Log Splitter Valve  Handle mounting bracket to fits our valves  and many others used on SpeeCo, Huskee,  Brave, MTD, Northern and more.

2” mounting hole distance

 0.9” center hole

Standard MTD Style

LSVL401

 LSVL402
