| SKu/Part# Description specifcation | |||
|---|---|---|---|

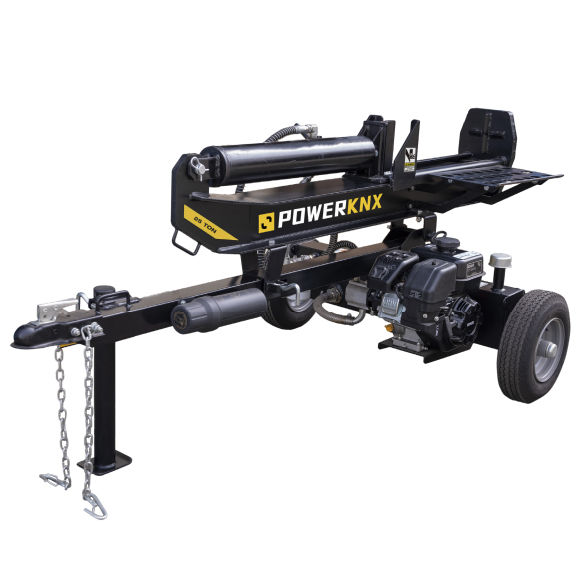

| 22-Ton HaIf-Beam HorizontaI/VerticaI Log spIitter | Beam | 8" footplate | |
| Maximum spIitting Force | 25 tons* | VaIVe | Auto return with adjustable detent |
| Engine | 6.5 HP 196cc,Kohler sH265 EPA/CARB approved | wheeIs | D.О.T. approved 16" О.D. road tires |
| Maximum Log Length | 25" | coupIer | 2" ball with safety chains |
| cycIe Time | 11.2 seconds, down and back* | RepIacement FiIters | Return Filter |
| cyIinder | 4" diameterx24"stroke | suction screen | |
| Pump | Two stage 15 gallons/minute | 401 HQ Qty | 80 |
| HydrauIic capacity | 6.5 gallons max. system 4gallons operational | shipping weight | 510 lbs. without Yuids, 643 lbs. with Yuids |
| wedge | 8" highheat-treatedsteel | warranty | 3 oear / 2 oear / 1 oear Limited Warranty |
