Hydraulic Tie Rod Cylinders

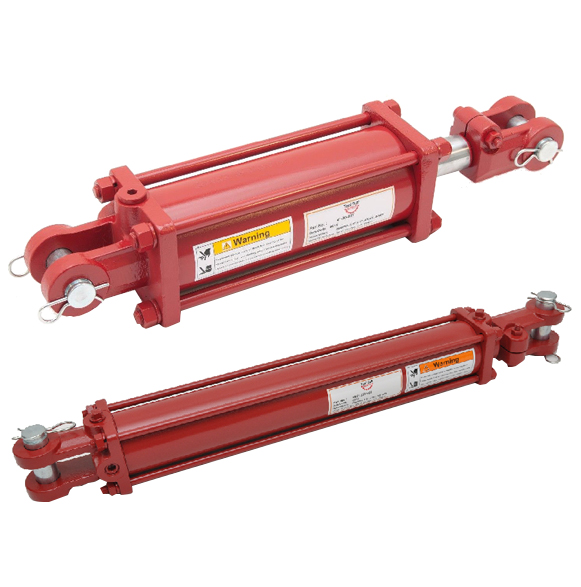

2500 psi double acting tie rod cylinder.
Both ends have a 1” pin. Rod ends are threaded. All dimensions are in inches.
| Bore Diameter | Stroke Length | Rod Diameter | Retracted Length | Extended Length | Ports | Weight (lbs) | SKU |
|---|---|---|---|---|---|---|---|
| 2 | 6 | 2001/1/8 | 16.25 | 22.25 | 3/8” NPT | 15 | TRCL2006NPT |
| 2 | 8 | 2001/1/8 | 18.25 | 26.25 | 3/8” NPT | 17 | TRCL2008NPT |
| 2 | 10 | 2001/1/8 | 20.25 | 30.25 | 3/8” NPT | 19 | TRCL2010NPT |
| 2.5 | 8 | 2001/1/8 | 18.25 | 26.25 | 3/8” NPT | 20 | TRCL2508NPT |
| 2.5 | 16 | 2001/1/8 | 26.25 | 42.25 | 3/8” NPT | 29 | TRCL2516NPT |
| 2.5 | 24 | 2001/1/8 | 34.25 | 58.25 | 3/8” NPT | 34 | TRCL2524NPT |
| 3 | 8 | 2001/1/4 | 18.25 | 26.25 | 1/2” NPT | 27 | TRCL3008NPT |
| 3 | 8 ASAE | 2001/1/4 | 20.25 | 28.25 | 1/2” NPT | 28 | TRCL3008A |
| 3 | 12 | 2001/1/4 | 22.25 | 34.25 | 1/2” NPT | 32 | TRCL3012NPT |
| 3 | 14 | 2001/1/4 | 24.25 | 38.25 | 1/2” NPT | 35 | TRCL3014NPT |
| 3 | 16 | 2001/1/4 | 26.25 | 42.25 | 1/2” NPT | 37 | TRCL3016NPT |
| 3.5 | 8 ASAE | 2001/1/4 | 20.25 | 28.25 | 1/2” NPT | 32 | TRCL3508A |
| 3.5 | 16 | 2001/1/4 | 26.25 | 42.25 | 1/2” NPT | 48 | TRCL3516NPT |
| 3.5 | 30 | 1-1/2” | 40.25 | 70.25 | 1/2” NPT | 62 | TRCL3530NPT |
| 3.5 | 36 | 1-1/2” | 46.25 | 82.25 | 1/2” NPT | 70 | TRCL3536NPT |
| 4 | 8 | 1-1/2” | 18.25 | 26.25 | 1/2” NPT | 42 | TRCL4008NPT |
| 4 | 16 | 1-1/2” | 26.25 | 42.25 | 1/2” NPT | 62 | TRCL4016NPT |
| 4 | 24 | 1-1/2” | 34.25 | 58.25 | 1/2” NPT | 79 | TRCL4024NPT |
