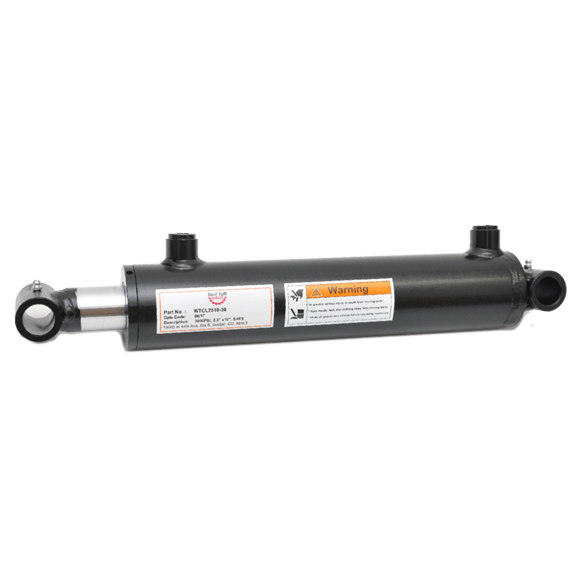

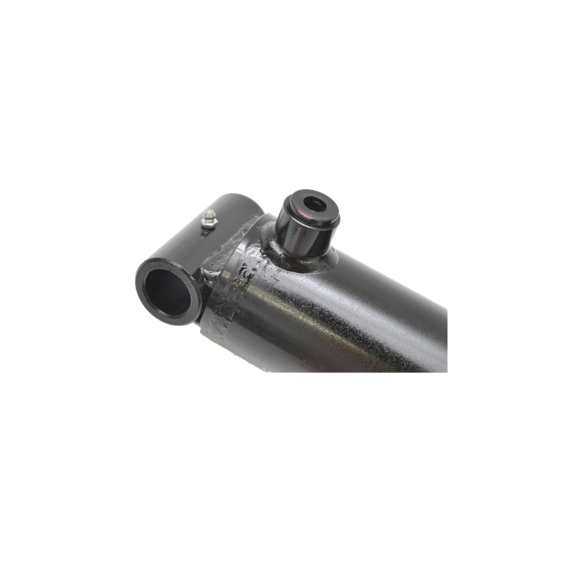

Hydraulic Cross Tube Cylinders
3000 psi double acting tie rod cylinder. All dimensions are in inches.
| Bore Diameter | Stroke Length | Rod Diameter | Retracted Length | Extended Length | Cross Tube I.D. | Ports | SKU |
|---|---|---|---|---|---|---|---|
| 1.5 | 16 | 1” | 24 | 40 | 3/4” | SAE-6 | CTCL1516 |
| 2 | 8 | 1-1/4” | 16 | 24 | 1” | SAE-6 | CTCL2008 |
| 2 | 18 | 1-1/4” | 26 | 44 | 1” | SAE-6 | CTCL2018 |
| 2.5 | 6 | 1-1/2” | 14 | 20 | 1” | SAE-8 | CTCL2506 |
| 2.5 | 10 | 1-1/2” | 18 | 28 | 1” | SAE-8 | CTCL2510 |
| 2.5 | 16 | 1-1/2” | 24 | 40 | 1” | SAE-8 | CTCL2516 |
| 2.5 | 18 | 1-1/2” | 26 | 44 | 1” | SAE-8 | CTCL2518 |
| 3 | 16 | 1-1/2” | 24 | 40 | 1” | SAE-8 | CTCL3016 |
