Portable Hydraulic Power Pack

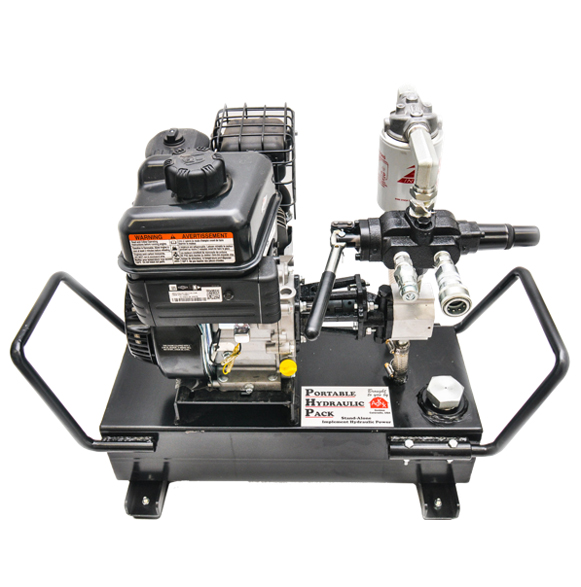

The AgKNX Portable Hydraulic Pack (PHP) is a stand alone source for hydraulic power. It can be used to replace a tractor or skid steer as a source of power for remote hydraulic applications, or to use hydraulic power where it wouldn’t otherwise be possible. Made with our selection of rug- ged components and assembled with safety and ease of use at the forefront.
Features:
Electric Or Manual Start options
Removable handle on one side allows fitting other handling devices
Magnetic drain plug for hydraulic tank
Return filter extends life of hydraulic fluid, your PHP, and implement being used
Rubber feet keep PHP in place and absorb shocks during transport
Available with electric start engine
Wide-mouth fill port on tank
| PHP50 | PHP100 | |
|---|---|---|
| Engine | 7.5 HP / 212cc | 9 HP / 270cc |
| Hydraulic Tank | 5.6 Gallons | 10.2 Gallons |
| Hydraulic Pump | 7.1 gpm, single stage | 7.1 gpm, single stage Control Valve 2-way, |
| 25 gpm, 3000 psi action | 1-way 1000 psi (adjustable) detent 1-way 1000 psi (adjustable) detent | 2-way, 25 gpm, 3000 psi action |
| Max Output Pressure | 900 psi | 1200 psi |
| Electric Start Optional | Yes (PHP50E) | Yes (PHP100E) |

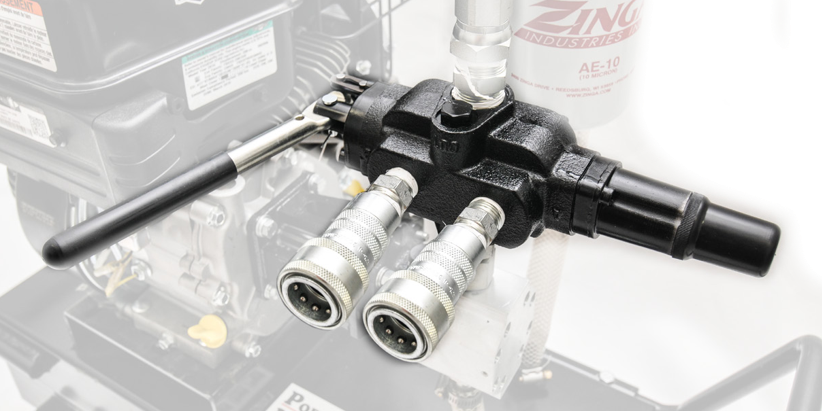

1/2” quickconnect Ag fittings are replaceable by other fittings of choice. The valve has 1/2” Female NPT fittings in which other fittings can be installed.
Two female Ag fittings that simulate a tractor are included standard.
